Vessels For Sale


ModelLightwave 45' Grande
L.O.A.45'0" (13.72m)
Displacement Light8000
Engines / Hours2 x D2-55
Fuel Capacity2 x 400lt Fuel GRP tanks totalling 800 litres
Water Capacity2 x 400 lt freshwater tanks with carbon filters on outlet side. Also water collection from cockpit hard top

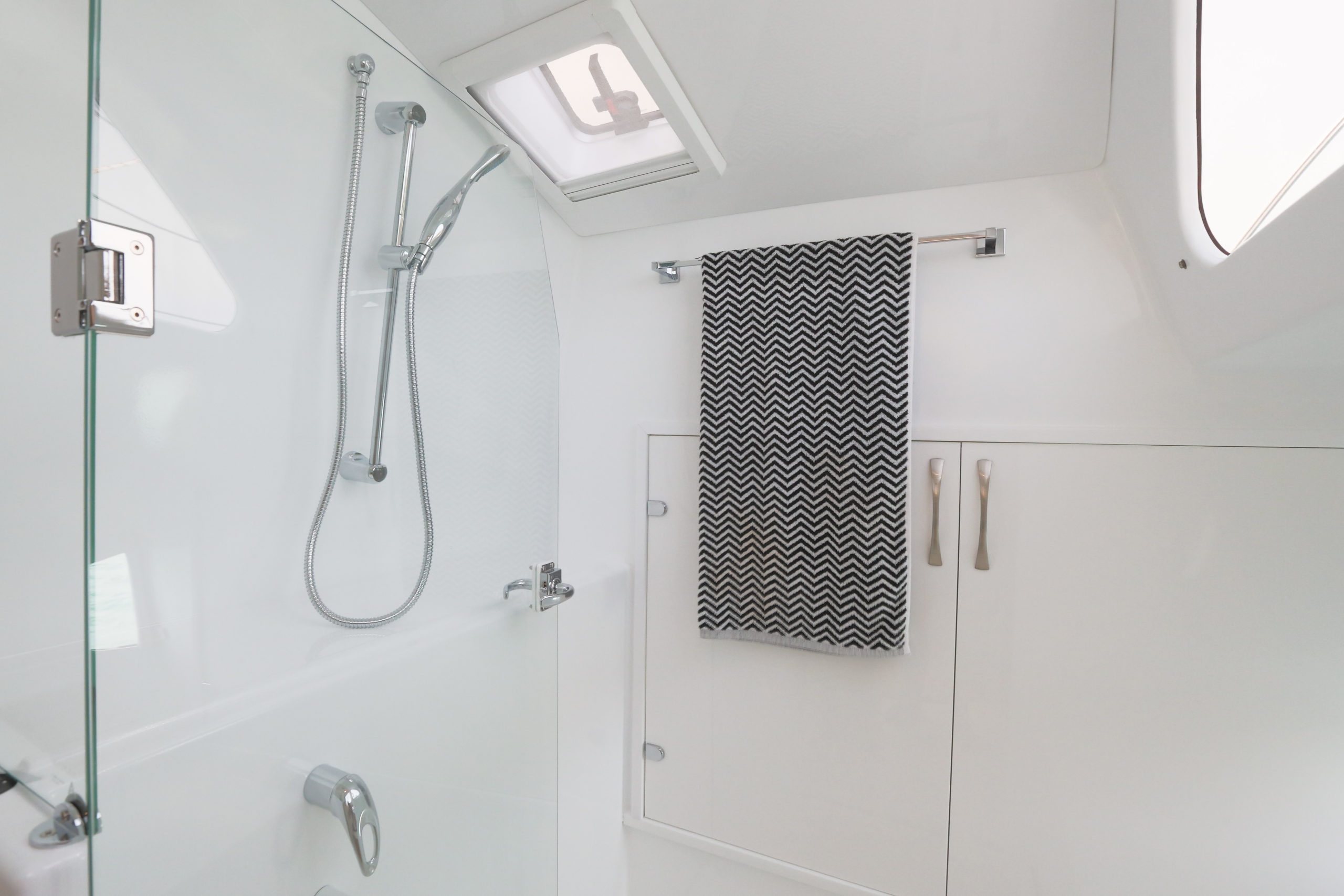

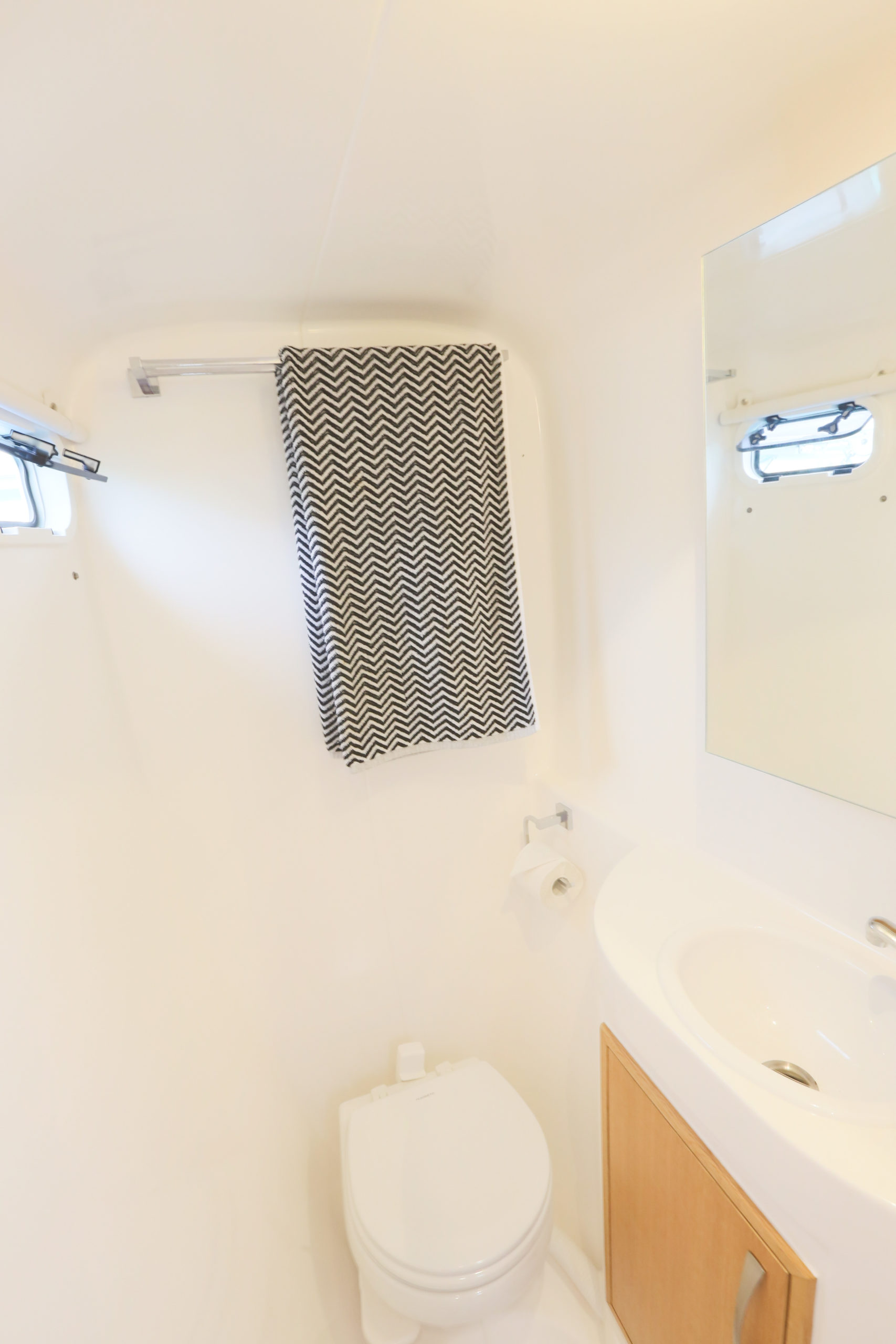

AccommodationOwners side Port Side - Master cabin with queen size bed, spring mattress - Full size shower and toilet - Full size washing machine and dryer Starboard side - Forward guest cabin, queen size mattress, with shower and toilet - Aft single cabin with two single bunks that can be converted to twin bed - Office area with full size computer screen and desk chair Ample storage with 27 drawers around the boat American oak trim throughout

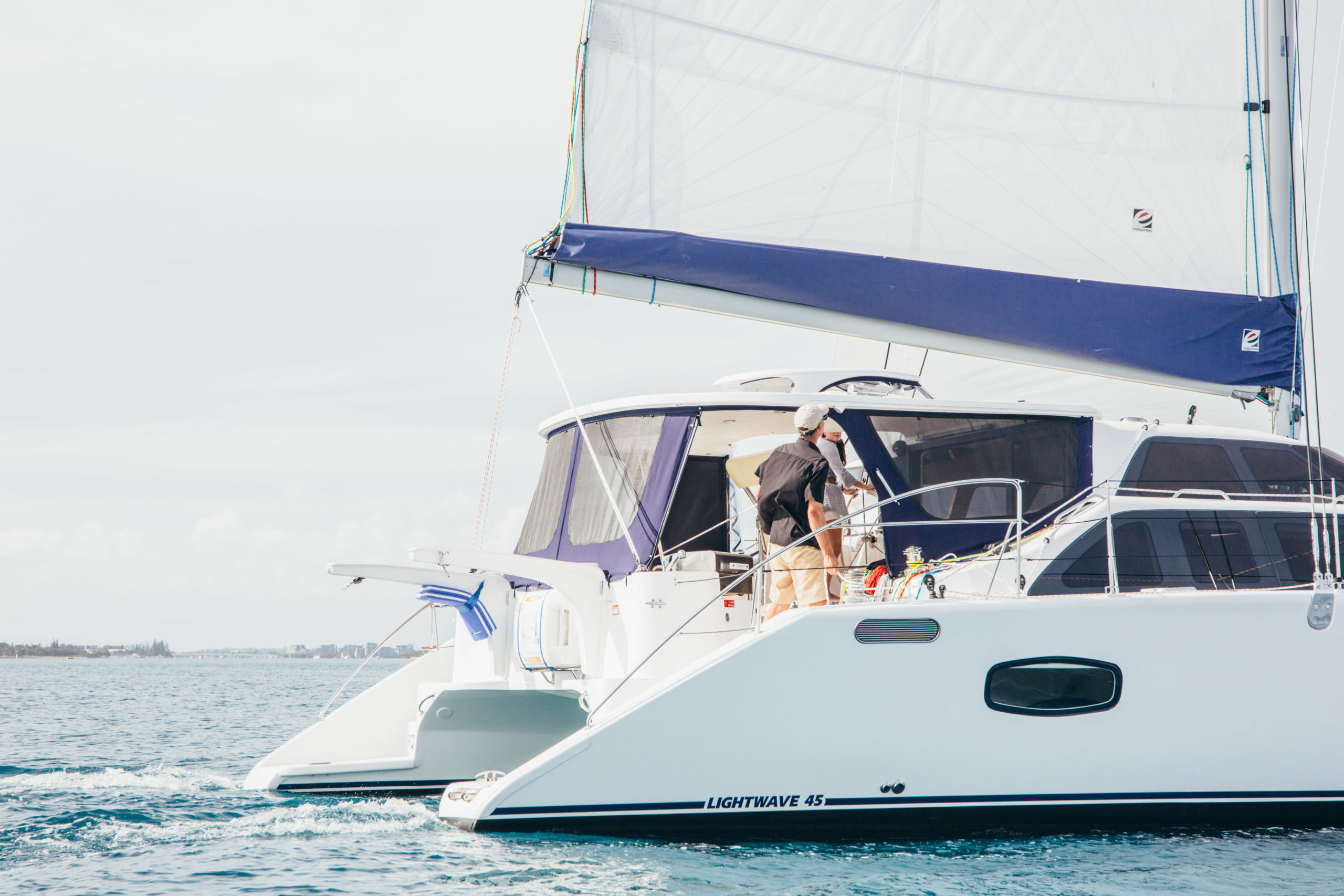

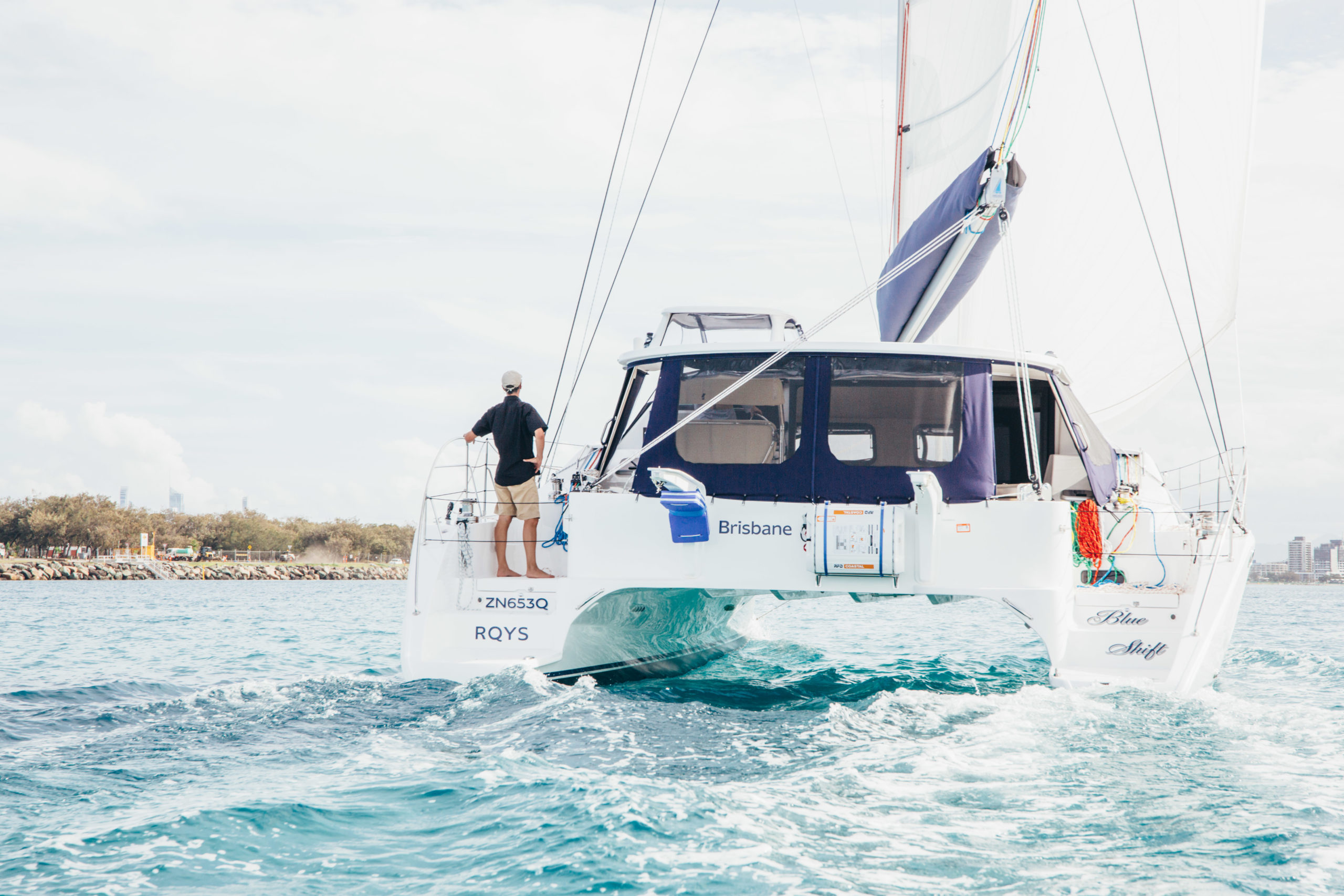

Make the Blue Shift you’ve always dreamed of, to the highly sought after, latest model Lightwave 45 Grande.

Generously equipped for blue water cruising, this luxuriously customised Lightwave 45 Grande’ has had limited use and presents as new.

An incredible opportunity for a new boat buyer. Fast track your cruising ambitions with one of the world’s best cruising catamarans – the only production catamarans made in Australia.

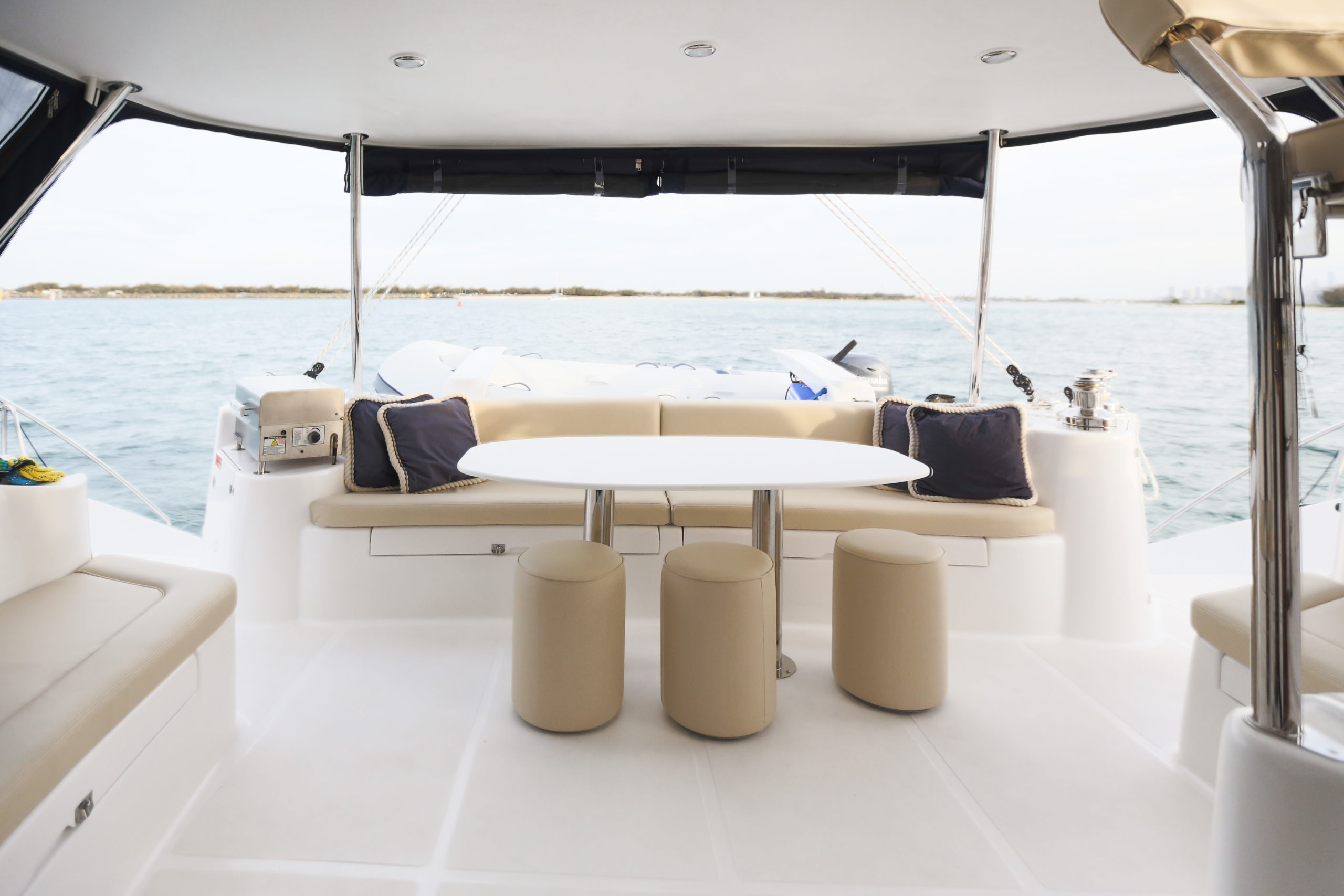

Uniquely catering for the harsh elements of tropical island cruising, dinstinctive features of the Lightwave 45 Grande include the double deck cabin for a light and breezy interior; one of the safest helms available with protected, unobstructed vision to all four points of the boat; the largest covered cockpit of any catamaran in this size range providing room for alfresco dining and lounging areas free of obstructions; significantly lighter than most catamarans with great payload capability, & excellent sailing performance.

This Lightwave 45 is set up to be easily handled by a cruising couple. The layout is considered for live aboard with extended family & friends accommodation. Customised interior with solid American Oak timber accents, includes galley up with a forward looking navigation station, office, three cabins & two bathrooms.

Dealing with the Builder direct, you can be rest assured of the excellent support that comes with owning a Lightwave catamaran.

Other Vessels

Enquire About this Vessel

Fill out this contact form and we’ll be in touch

Our Yachts

“We Cannot Discover New Oceans Unless We Have The Courage To Lose Sight Of The Shore” – Faulkner

Model Lightwave

Lightwave 46

Model Outlines Updated 1 (1)

Lightwave 55

Lw45 Popup Plumbing

Plumbing System

The Lightwave 46 has 800L of fresh water & 800L of diesel, in tanks that are built directly into the hull. High quality, purpose grade materials are used in this labour intensive construction method which guarantees an extremely high-quality product that will last for the lifetime of the boat. Dual freshwater pumps provided piece of mind through redundancy. A water transfer line is built into the system to allow water to travel between either tank. Fresh water vacuum toilets that use minimal fresh water (less than 400ml per flush) are a standard feature on the Lightwave 46, eliminating the stale saltwater smell that can encroach the cabin area.  A saltwater system is also fitted to the vessel to allow an anchor wash, saltwater tap in the galley and hose in the cockpit.

L46i Engine 2

Electrical System

The Lightwave 46 is designed for self-sufficient blue water cruising. The vessel is supplied with a 12-volt DC and a 240-volt AC electrical system. A 600Ah AGM battery system is offered on the vessel with an optional 660Ah lithium-ion battery bank. There are various solar options producing up to 2000kw of power. There is also the option to have a 4Kw AC diesel generator which is coupled with the inverter to allow for a high output. All areas of the vessels electrics are designed to be easily accessible and traceable with minimal disruption to the boats systems. Electrical components on the Lightwave 46 are carefully selected to ensure a minimum power consumption is achieved. Onboard systems incorporate the latest in technology, allowing remote control and monitoring of critical power systems, battery and charging status, tank levels, bilge pumps, aerial and security CCTV as well as an array of other custom options.

Lw45 Popup Engine

Engineering Systems

The Lightwave 46 offers a very spacious area in the external engine rooms, to accommodate the standard 50hp engines & other engineering systems. All steering components as well as the optional generator are housed in the engine rooms, carefully positioned for ease of access for servicing and maintenance. The engine rooms are separated from the accommodation area with a bulkhead lined in sound dampening material to defer noise, heat and odour from entering the cabins. The engine rooms are also accessible from the inside of the boat if required.

Lw45 Popup Img

Sailing Systems

Designed with the priority for the ultimate sailing experience, the deck layout and sailing systems are configured for ease of handling while shorthanded. The line system on the Lightwave 46 has been designed so all lines are organised and accessible from an area where the sails can be easily observed. Lines all lead to the cockpit and travel under serviceable fibreglass boards which not only keep the lines organised, but also remove possible tripping hazards. Hanging points are purposely provided creating a neat and organised place for line tails to be stored. Anderson winches and Ronstan deck gear are superiorly selected as standard equipment, with optional electric winches also available. A bridal main sheet system is cleverly applied to eliminate the safety concerns of a traveller car system traditionally used on catamarans.
